- Place of Origin: Jiangyin,China
- Brand Name: XinYu
- Model Number: XY-317
- Weight: 2.000 kg
If your profile require good quantity, We will do free moulds for you
1). Aluminium profiles for architecture
a). Aluminium profile for door and window

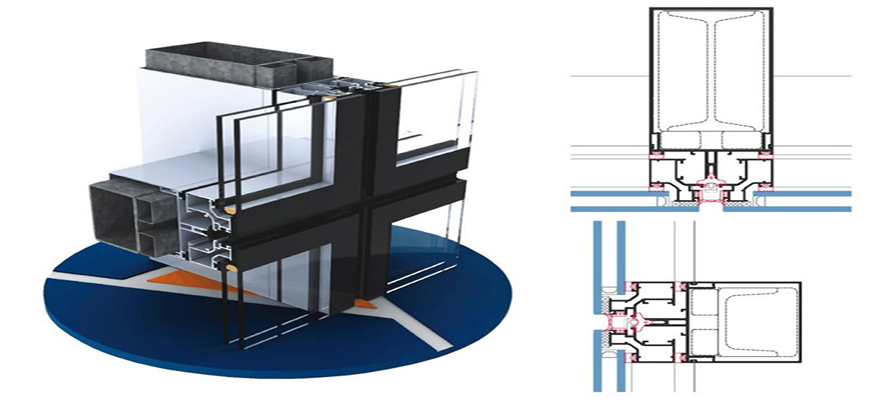

b). Aluminium profilet for curtain wall
c). Aluminium profiles for louver / shutter
d). Aluminium profile for handrail and barrier
e). Aluminium profile for decorations,
f). Aluminum profile with thermal barrier strip,
g). Aluminium tube, square pipes and “U”/ “I”/”L” profile
h). Aluminium sheet for roof tile, ceiling, curtain wall etc.
i). Other custom design aluminium products.
2). Aluminium profiles for industry
a). Heat sink for lighting, speaker, & other electrical equipment.
b). Furniture parts, ladder, mounting bracket/frame for bike etc.
c). The other custom desing aluminium extrusion products.
CHEMICAL COMPOSITION:
Aluminium Alloy Chemical Composition | ||||
Alloy | 6063 (%) | 6063A (%) | 6061 (%) | 6082 (%) |
Si | 0.2~0.60 | 0.3~0.60 | 0.4~0.80 | 0.7~1.30 |
Fe | 0.35 | 0.15~0.35 | 0.70 | 0.50 |
Cu | 0.10 | 0.10 | 0.15~0.40 | 0.10 |
Mn | 0.10 | 0.15 | 0.15 | 0.40~1.0 |
Mg | 0.45~0.90 | 0.60~0.90 | 0.80~1.20 | 0.6~1.20 |
Cr | 0.10 | 0.05 | 0.04~0.35 | 0.25 |
Zn | 0.10 | 0.15 | 0.25 | 0.20 |
Ti | 0.10 | 0.10 | 0.15 | 0.10 |
Other (each) | 0.05 | 0.05 | 0.05 | 0.50 |
Other (total) | 0.15 | 0.15 | 0.15 | 0.15 |
Al | Remainder | Remainder | Remainder | Remainder |
ANODIZED GRADE:
Class | Min Average Film Thickness | Min Part Film Thickness |
AA10 | 10 | 8 |
AA15 | 15 | 12 |
AA20 | 20 | 16 |
AA25 | 25 | 20 |
PRODUCT FEATURE:
Material | A6063 T5 |
Characteristics of mechanics | 1, Tensile strength: ≥ 205 N/mm2 |
2, Yield strength: ≥ 110 Mpa | |
3, Hardness(HW): ≥ 8 | |
Appearance | 1, No obvious Crack, Scratch , Peeling, Corrosion and air bubble |
2, Hang mark is accepted at two end of the profiles, but should less than 10mm | |
Application | 1, Architecture: Windows and Doors, Curtain Walls, Shutter, Louver, Barrier, Fence, Ceiling, Handrail, balustrades, showcase, Partition |
2, Industrial: tube, pipe, LED strip, heat-sink, motor housing, fins, tent, solar, Vehicle beam, TV Frame | |
3, Furniture: Chair, Wardrobe, Cabinet, Ladder, Closet, Tile Trim | |
Products Feature | 1, Environmentally Friendly, Elegant appearance |
2, Corrosion-Resistant, Abrasion Resistant, High Weather Resistant | |
3, Air-Proof, Water-Proof, Anti-Aging, Durable, Shining |
